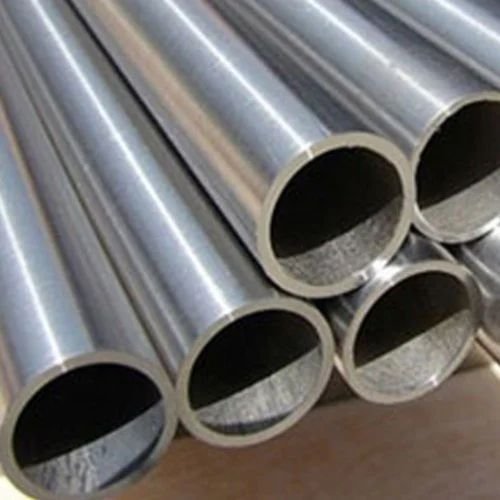

Metal Pipes & Tubes


Metal Pipes & Tubes

Avail from us a wide range of Metal Pipes & Tubes sourced from the most reputed manufacturers. We ensure that only the best quality metals are used in the manufacturing of our Metal Pipes & Tubes. We offer our Metal Pipes & Tubes in different specifications suiting different industrial applications. We offer them in shapes ranging from round, square and rectangular in varying sizes and thickness.



Details

Stainless Steel ASTM A312 TP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/904L/ etc.
Carbon Steel ASTM A53 GR. B/ A106 GR. B/ API 5L GRADE B/ API 5L GR. X42/46/52/56/60/65/70 / A333 GR. 3/ GR. 6/ etc.
Alloy Steel ASTM A335 GR. P1/ P5/ P9/ P11/ P22/ P91/ etc.
Others Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, Etc.
Types Round , Square, Rectangular.
Size Upto 24" NB. (Seamless & Welded)
Wall Thickness Sch. 5S to Sch. XXS

Specifications

Specification Chart of Tubes & Pipes
CHEMICAL COMPOSITION
CS :- Carbon Steel
Mechanical Propent-size: 8pt
Tensile Strength Yield stress Elongation In
Specification WT Type C% Mn% MAX

P% MI
S% Si% Mpa Mpa 50mm MIN Longitudinal
ASTM A179 M/W CS 0.06-0.18 0.27-0.63 0.05 0.06 -- -- -- --
ASTM A192 M/W CS 0.06-0.18 0.27-0.63 0.05 0.06 0.25 MAX -- -- --
ASTM A210/ A1 M/W CS 0.27 MAX 0.93 MAX 0.05 0.06 0.10 MAX 312 MAX 255 MIN 30
DIN/17175/ST35.8 A/W CS 0.17 MAX 0.40 MIN 0.04 0.04 0.35 MAX 340-441 235 MIN 25
DIN/17175/ST45.8 A/W CS 0.22 MAX 0.45 MIN 0.04 0.04 0.10-0.35 441-540 255 MIN 21
IS 3074 CDS1 A/W CS 0.20 MAX 0.30-0.60 0.05 0.05 -- 432 373 --
IS 3074 CDS2 A/W CS 0.10-0.18 0.40-0.80 0.05 0.05 -- 432 373 --
IS 3074 CDS3 A/W CS 0.10-0.18 0.40-0.80 0.05 0.05 -- 432 373 --
IS 3074 CDS4 A/W CS 0.10-0.18 0.60-0.90 0.05 0.05 -- 569 461 --
IS 3074 CDS5 A/W CS 0.10-0.18 0.60-0.90 0.05 0.05 -- 687 589 --
DIN 2391 PART1 5T-35 -- CS 0.17 >0.04 0.05 0.05 0.35 432 - 5.00%
DIN 2391 PART1 5T-45 -- CS 0.21 >0.04 0.05 0.05 0.35 540 -- 5.00%
BS 6323 PART 4 -- CS 0.25 MAX 1.25 MAX 0.05 0.05 0.35 520 415 5.00%

Brand Names & It's Manufacturer

Brand Name Its Manufacture Country
Sumihard Sumitomo Metal Japan
Hardox SSAB Sweden
Raex Ruukki Finland
Everhard JFE Steel Japan
Welhard NSC Steel Japan
FORA Indu Steel Belgium
XAR ThyssenKrupp Metal Germany
Abrazo Corus Europe
Nicrodur Acroni Europe
Brinar Salzgitter Germany
Dillidur Dillinger Germany
Hartplast Huta European
Quard Duferco Belgium
